HIZAR.COPY.2000




HIZAR.COPY.2000 // COPY CUT BAD SAW
HIZAR.COPY.2000 // KOPYALI KESİM BIÇKI MAKİNESİ
şekilli parça kesimi için kullanılan yüksek verimli dikey kopyalama testeresidir. Dört şablonlu kalıp sistemi ile çalışır. Bu sayede dört farklı model ile kesim seçeneği sunar. Testere şablon kalıbı takip ederek kesim yapar.Bu makine sandalye, masa, çeşitli kulplar, çerçeveler ve şekillendirilmiş parçalara ihtiyaç duyan diğer her türlü eşyaların üretiminde kullanılmaktadır. HIZAR.COPY.2000, a highly efficient vertical copying saw used for shaped piece cutting. It works with a mold system with four templates. Thus, it offers four different models of cutting options. Cut by following the template mold to saw. This machine is used in the production of chairs, tables, various handles, frames and any other items that need shaped parts.

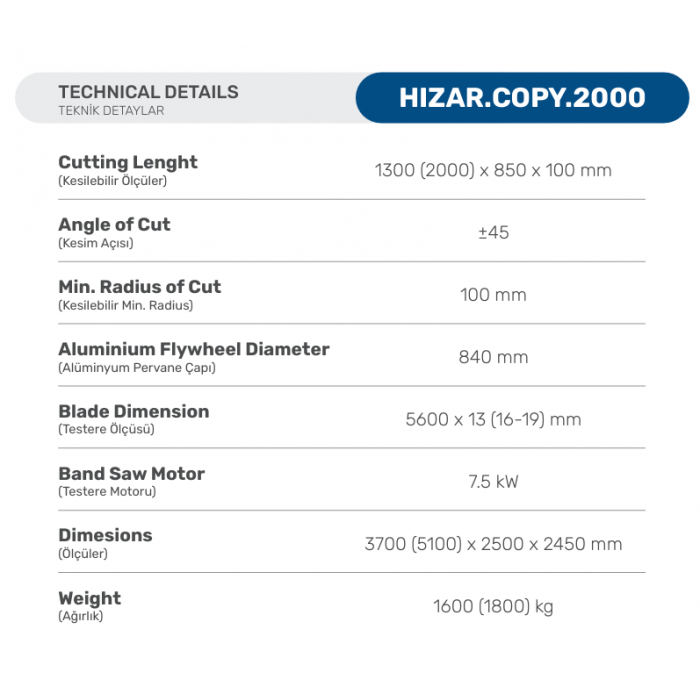

TEKNICAL DETAILS TEKNİK DETAYLAR |
HIZAR.COPY.2000 | |
---|---|---|
Cutting Length ( Kesilebilme Ölçüleri ) | 1300 (2000) x 85 x 100 mm | |
Angle of Cut ( Kesim Açısı ) | ± 45 | |
Min.Radius of Cut ( Kesilebilir Min.Radius ) | 100 mm | |
Aluminium Flywheel Diameter ( Aleminyum Pervane Çapı ) | 840 mm | |
Blade Dimension ( Testere Ölçüsü ) | 5600 x 13(16-19) mm | |
Band Saw Motor ( Testere Motoru ) | 75 kw | |
Dimesions ( Ölçüler ) | 3700 ( 5100 ) x 2500 x 2450 mm | |
Weight ( Ağırlık) | 1600 ( 1800 ) kg |
